GH - tube clamps These tube clamps are used for the mounting of PMA conduits
with large nominal widths. The integrated rib allows an optimal
strain relief and thus avoids the movement of the conduit in
axial direction. Due to the rib the clamp can also be pre-mounted
on the conduit. This allows easy handling during installation. High-grade, specially formulated polyamide 6
One-piece design
Integrated rib provides axial strain relief
Allows turning of the conduit thus avoiding torsion stresses
Pre-fixation on the conduit possible
Allows solid fixation with two screws
Self-extinguishing
Free form halogen and cadmium
Fits both conduit profiles-fine (T) and coarse (G)
No corrosion
Temperature range: -40°C to+105°C; Shot-term: +160°C

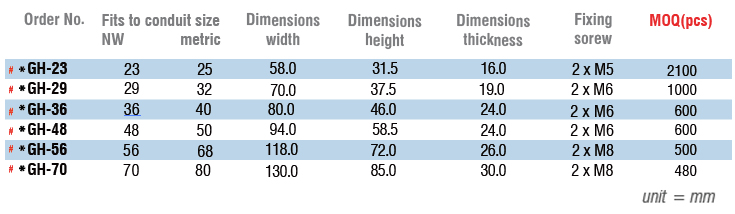

 * =Replace with “B” to order black or “S” to order grey For technical specification in details, please ask for “Technical Data Sheet” DB-Nr.60025 標記爲#的産品有最小起訂量（MOQ）  |
