XR90G

 Introduction

XR90G - very flexible,medium-duty
For dynamically moving conduit systems
in robotics and automation industry
Outer, intermediate and inner layer made from
high-grade, specially formulated polyamide 12
With wear indicator
High resistance to continuous bending
No abrupt conduit failure due to high tear propagation resistance
High resistance to torsion and elongation
Long service life
Free from halogen and cadmium
Temperature range: -40°C to+95°C; Short-term to+150°C
Chemical resistance: To fuels, mineral oils, fats, alkalies,
                                  acids and bases etc.

Profiles-fine (T) ; Profiles-coarse (G)

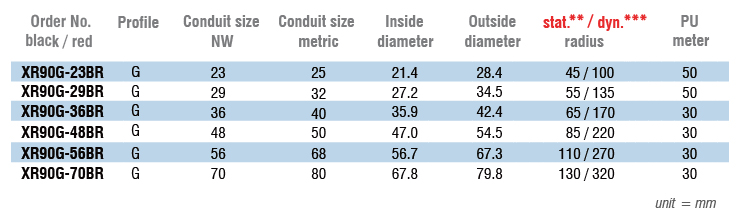

For technical specification in details, please ask for “Technical Data Sheet” DB-Nr.16080
