VNDZ/VNZ

 Introduction

VNDZ/VNZ - straight, metric, strain relief

In machine and plant construction.
For separation of damp and dry areas.
Furthermore, these connectors can especially be used where damp and dry areas have to be separated.
• Specially formulated polyamide 6, very high impact resistance
• Easy installation: simple push the conduit in
• High conduit pull-out strength
• Integrated strain relief optimally holds and seals cables
• If several conductors are used with the connector multiple sealing inserts MDE should be considered
• Vibration-resistant connection to PMAFLEX conduits
• Very good chemical properties, Free from halogens and cadmium
• Fits both conduit profiles-fine (T) and coarse (G)
•Temperature range: -40°C to+105°C; Short-term: +160°C
• Content of delivery:
IP66: Fitting with pre-assembled universal safety clips (AFN2)
IP68GT: Fitting with pre-assembled universal safety clips (AFN2) and conduit seal (NVN3-GT); thread gasket (SVN4))
IP68: Fitting with oval clips (OVN2), conduit seal (NVN3) and thread gasket (SVN4)

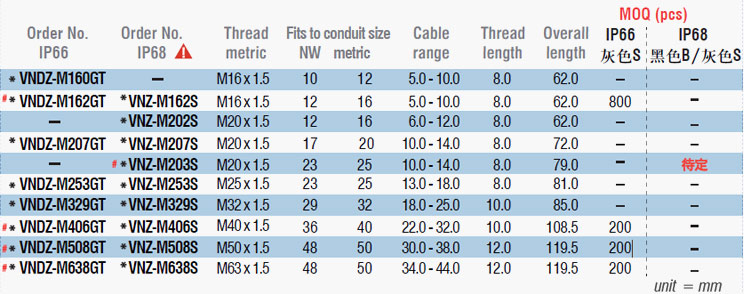

IP66 & IP66/IP68

* = Replace with “B” to order black or “S” to order grey
!=IP68GT available. Please replace final “S” with “GT” (Functional description PMAFIX IP68GT, page 3-11/12 /13).
For technical specification in details, please ask for “Technical Data Sheet” DB-Nr.25012 / 25002
標記爲#的産品有最小起訂量(MOQ), 待定=MOQ需與工廠確認
