VAV 45°

 Introduction

VAV 45°  -  elbow, PG
For applications with high technical requirements.

• High-grade, specially formulated polyamide 6
   thread made of nickel-plated brass
• Very high impact resistance
• High thread and system connection strength
• Vibration-proof connection to PMAFLEX conduits
• Easy installation
• High conduit pull-out strength
• Very good chemical properties
• Polyamide free from halogens and cadmium
• Fits both conduit profiles-fine (T) and coarse (G)
• Temperature range: -40°C to+105°C; Short-term: +160°C
• Content of delivery:
    IP68GT:  Fitting with pre-assembled universal safety clips (AFN2) and
                  conduit seal (NVN3-GT); thread seal (SVN4)
    IP68:      Fitting with oval clips (OVN2), conduit and thread seal (NVN3, SVN4)

IP66/IP68

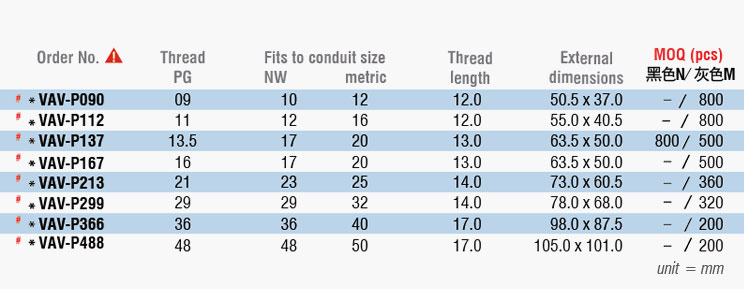

* =Replace with “N” to order black or “M” to order grey
!=IP68GT available. Please add “GT” after the order no. (Functional description PMAFIX IP68GT, page 3-11/12/13).
For technical specification in details,  please ask for “Technical Data Sheet” DB-Nr.32020
標記爲#的産品有最小起訂量(MOQ)
