VA 45° - elbow, NPT For cable protection systems in a wide range of applications.
High-grade, specially formulated polyamide 6
Very high impact resistance
Vibration-proof connection to PMAFLEX conduits
Easy installation
High conduit pull-out strength
Can be easily re-opened with a screwdriver
Very good chemical properties
Free from halogens and cadmium
Fits both conduit profiles-fine (T) and coarse (G)
Temperature range: -40°C to+105°C; Short-term: +160°C
Content of delivery:
IP66: Fitting with pre-assembled universal safety clips (AFN2)
IP68GT: Fitting with pre-assembled universal safety clips (AFN2)
and conduit seal (NVN3-GT); thread gasket (SVN4))
IP68: Fitting with oval clips (OVN2), conduit seal (NVN3) and thread gasket (SVN4)

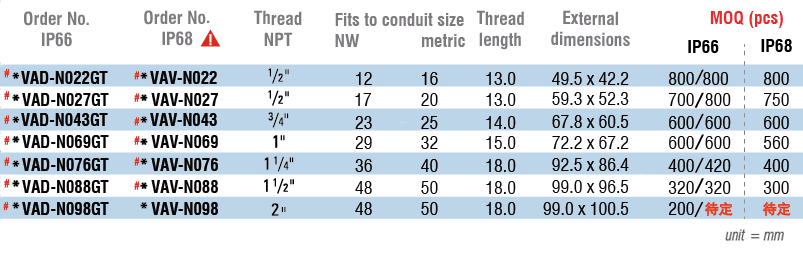

IP66 & IP66/IP68  * =Replace with “B” to order black or “S” to order grey ！=IP68GT available. Please add “GT” after the order no. (Functional description PMAFIX IP68GT, page 3-11/12/13). For technical specification in details, please ask for “Technical Data Sheet” DB-Nr.23028/22024 標記爲#的産品有最小起訂量（MOQ）, 待定=MOQ需與工廠確認  |
