VA 45°

 Introduction

VA 45° -  elbow, metric
For cable protection systems in a wide range of applications.

• High-grade specially formulated polyamide 6
• Very high impact resistance
• Vibration-proof connection to PMAFLEX conduits
• Easy installation:simply push the conduit in
• High conduit pull-out strength
• Can be easily re-opened with a screwdriver
• Very good chemical properties
• Free from halogens and cadmium
• Fits both conduit profiles-fine (T) and coarse (G)
• Temperature range: -40°C to+105°C; Short-term: +160°C
• Content of delivery:
    IP66:     Fitting with pre-assembled universal safety clips (AFN2)
    IP68GT: Fitting with pre-assembled universal safety clips (AFN2)
                 and conduit seal (NVN3-GT); thread gasket (SVN4))
    IP68:     Fitting with oval clips (OVN2), conduit  seal (NVN3) and thread gasket (SVN4)

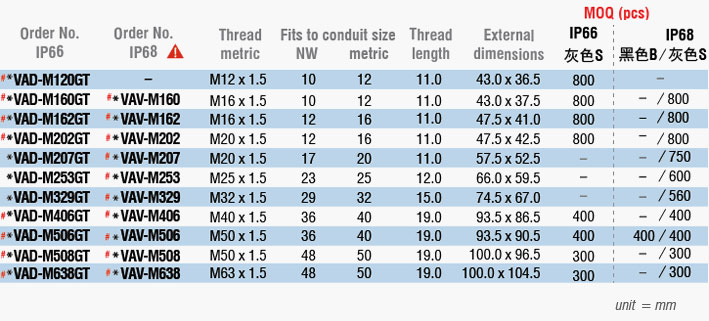

IP66 & IP66/IP68


* = Replace with “B” to order black or “S” to order grey
!= IP68GT available. Please add “GT” after the order no. (Functional description PMAFIX IP68GT, page 3-11/12/13).
For technical specification in details,  please ask for “Technical Data Sheet” DB-Nr.23027 / 22022
標記爲#的産品有最小起訂量(MOQ)
