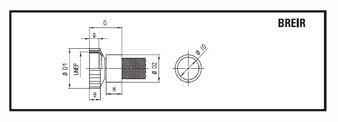

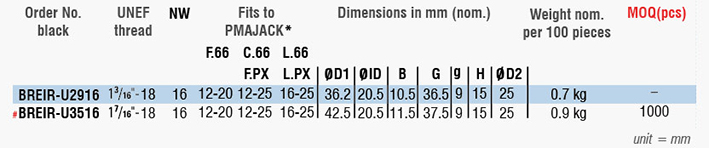

  BREIR - polyamide female thread adapter
In combination with PMA braided hoses.
High-grade, specially formulated polyaminde 6
Very high impact resistance
Suitable for round multi-pin connectors
Offers excellent termination for braids
Very good chemical properties
Free from halogens and cadmium
Temperature range: -40°C to+105°C; Short-term: +160°C
System belonging: PMA JACK F.66, C.66, L.66, F.PX, L.PX
 For technical specifiation in details,please ask for “Technical Data Sheet” DB-Nr.40091
*For exact braid and termination fitting configuration please refer to PMAJACK data sheets
標記爲#的産品有最小起訂量（MOQ）

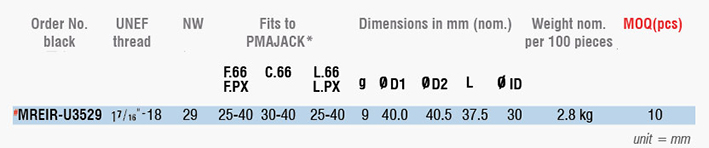

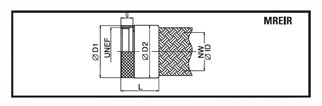

MREIR - Metal female thread adapter In combination with PMA braided hoses.
Famale thread adapters are made of black anodised aluminium
clamping ring is made of specially modified polyamide 6
Very high impact resistance
Suitable for round multi-pin connectors
Offers excellent termination for braids
Different thread types and sizes are available on request
Temperature range: -40°C to+105°C; Short-term: +160°C
System belonging: PMA JACK F.66, C.66, L.66, F.PX, L.PX
 For technical specifiation in details,please ask for “Technical Data Sheet” DB-Nr.40090.
For exact braid and termination fitting configuration please refer PMAJACK data sheets
標記爲#的産品有最小起訂量（MOQ）  |
