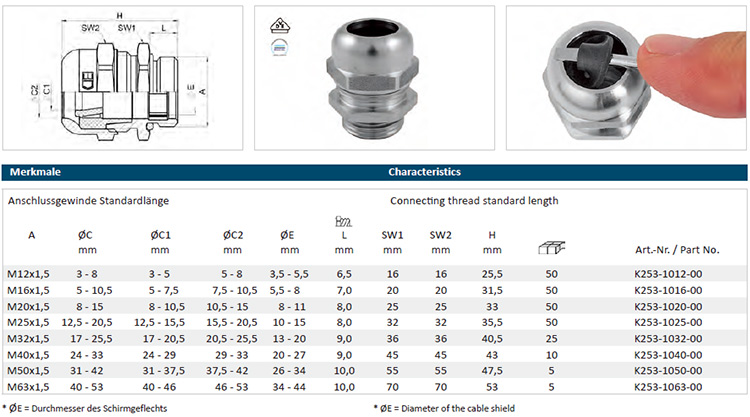

TECHNICAL DATA: Configuration
Dome nut Stainless steel 1.4404 / AISI 316L
Sealing insert TPE TPS
Gland body Stainless steel 1.4404 / AISI 316L
O-ring Nitrile rubber NBR
Contact ring Stainless steel 1.4310
Connecting thread metric, as per EN 60423
Properties • for cables with shielding
• quick and easy EMC connection of the cable
shield via the contacting spring with the gland
body and the housing potential
• large-area sealing protects the cable
• high cable anchorage, partially type B
• wide sealing and clamping range
• the inner sealing ring can be removed easily
for larger cables
• high UV, ozone and weather resistance
Temperature range -40 °C / +100 °C (dynamic)
Protection grade IP66 / IP68 up to 15 bar (30 min.) / IP69
Test standard EN 62444
VDE licence 40050445
DNV GL Certificate TAE00003VR
Comment details about test results - see annex
  |
