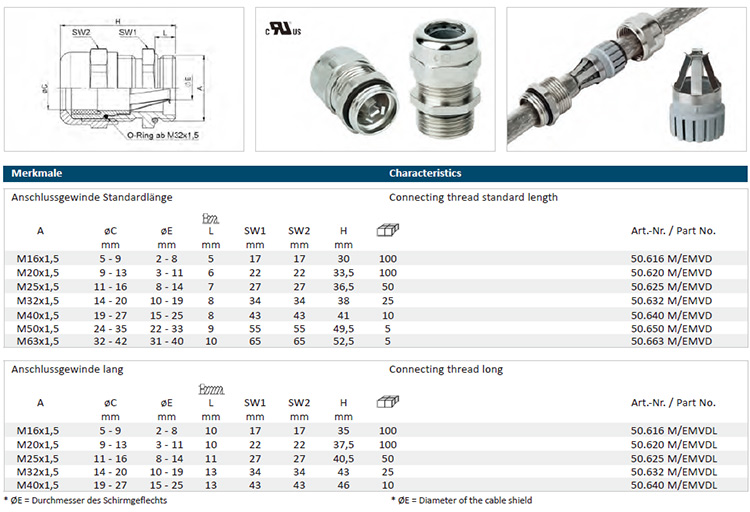

TECHNICAL DATA: Configuration
Dome nut Brass CuZn39Pb3, nickel-plated
Lamellar insert Polyamide PA6 V-2
Sealing ring Polychloroprene-Nitrile rubber CR/NBR
Contact spring Stainless steel
Gland body Brass CuZn39Pb3, nickel-plated
O-ring Nitrile rubber NBR
Connecting thread metric, as per EN 60423
Properties
• for cables with shielding
• quick and easy EMC connection of the cable shield
via the contacting spring with the gland body and
the housing potential
• integrated anchorage
• wide sealing and clamping range
Temperature range -20 °C / +100 °C (dynamic)
-40 °C (static, short term)
Protection grade IP68
Test standard UL 514B
UL / CSA-File E140310
Comment details about test results - see annex
  |
