Introduction
The electronics connector with the designation F9 are a complement to the broad range of the TRAC F products. The 9-pin male multipoint PCB receptacles are available with angled dip soldring contacts, the female multipoint plug are supplied with crimp snap-in contacts. Therefore the appropriate crimp contacts Type FSCS can be used. The connectors comply with protection class IP44 acc. to IEC EN 60529, they are onlyqualified for indoor application. This connectors are not considered for EMI shielding purposes.
The application areas include:
- Industrial Electronics
- Power Electronics
- Railway Engineering
Advantages:
- Elimination of an additional contact with the male multipoint connector compared to the FASTON connection
- Easy crimping of the female multipoint plugs on manual or automated facilities
- Space saving compared to the standard type F connectors
- The male multipoint PCB receptacles are easy to engage with the female multipoints connectors Technical Information Electrical properties All electric data are valid at sea level and an environment temperature of 20 °C. Deviating environment conditions are to be taken into account at the connector evaluation.

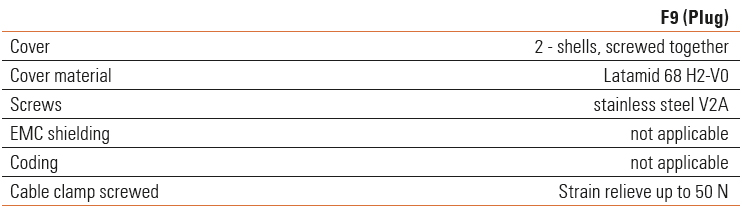

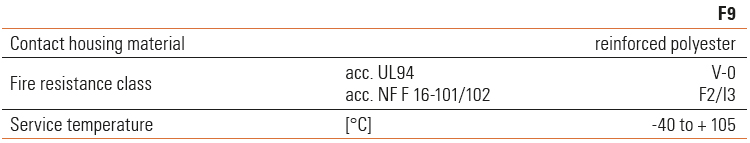

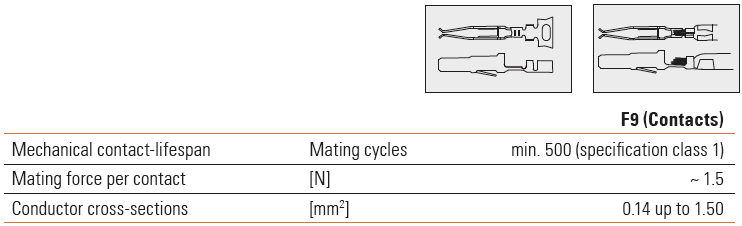

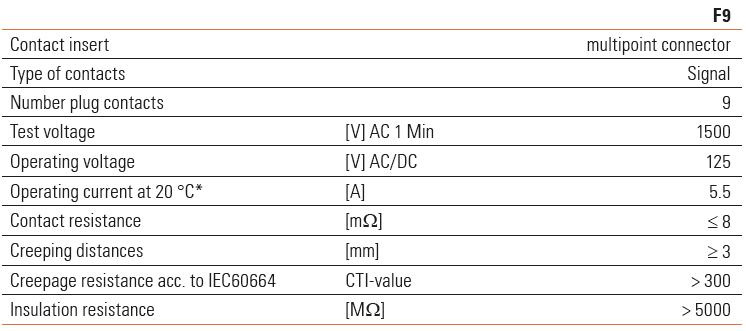

 *) Valid for single Contact, consider the rating according to IEC 60603-2 (DIN 41612) for connectors. Thermal properties  Mechanical properties connector  Mechanical properties contact   |
