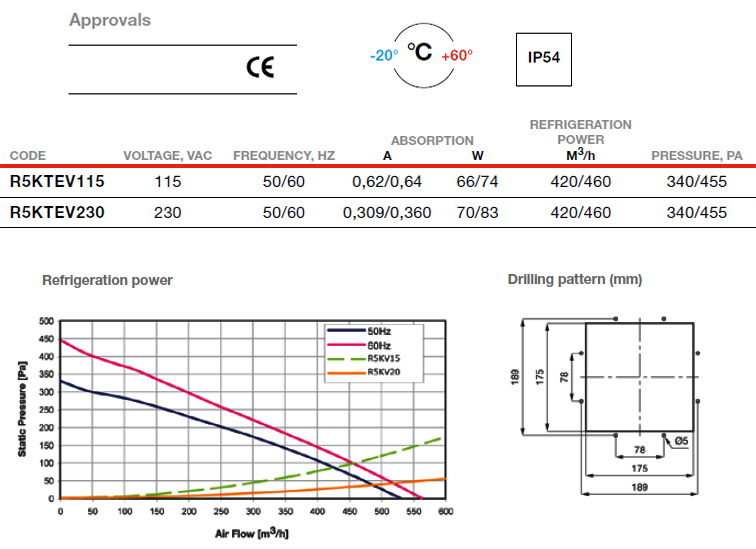

Roof exhaust unit
IP 54 • Material: PC/ABS UV resistant and aluminium
• Standard color: RAL 7035. Other colors available upon request
• Mounting: by means of 8 screws 4x16 mm for thermoplastic material
• Mounting range: any.
• Lifespan L10 at 25°C 80% RH: 75.000 h at 50 Hz, 80.000 at 60 Hz for
R5KTEV115; 59.000 h at 50 Hz, 73.000 at 60 Hz for R5KTEV230.
• Motor protection: thermal.
• Electrical connection: by means of a three-pole L-N-PE terminal.
• Earthing connection: by means of a PE pole terminal.
Application class Class I
Storing temperature from -20°C to +60°C
Noise 67,9/71,0 dB (A)
Weight 2,1 Kg
  |
