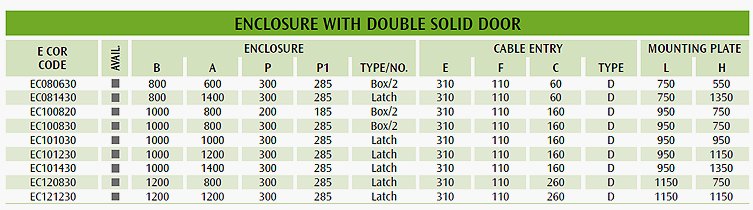

ECOR Enclosure With Double Solid Door
CHARACTERISTICS AND COMPOSITION Housing made from sheet steel with a thickness of 15/10.
Doors made from sheet steel with a thickness of 15/10 with ø 3 mm
double Bit locking system and 4 profiles (welded and painted).
Mounting plate made from sendzimir steel with a thickness of 25/10.
Cable entry closure flanges (with polyurethane gasket) made from sheet steel.
Set of screws for grounding and assembly.
PAINTING
E DUP - cathodic electrophoresis paint with epoxy resin and finish with
thermosetting epoxy-polyester powders for ETA standard electrostatic cycle.
Colour: RAL7035 textured.
PROTECTION RATING
IP66 compliant with IEC EN62208 and EN60529.
NEMA12 compliant with UL508A and UL50 (except EC121230).
Protection rating ensured by the two-component polyurethane foam gasket

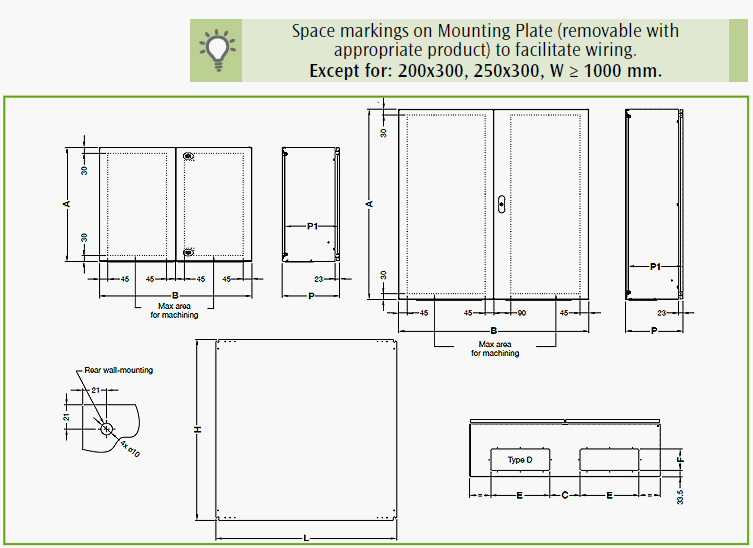

Impact resistance rating IK10 in compliant with IEC EN62208 and EN62262.  Markings (removable with appropriate product)
to facilitate wiring.
• Except for: 200x300, 250x300, W ≥ 1000 mm.

 |
