Housing Accessories

CHARACTERISTICS AND COMPOSITION

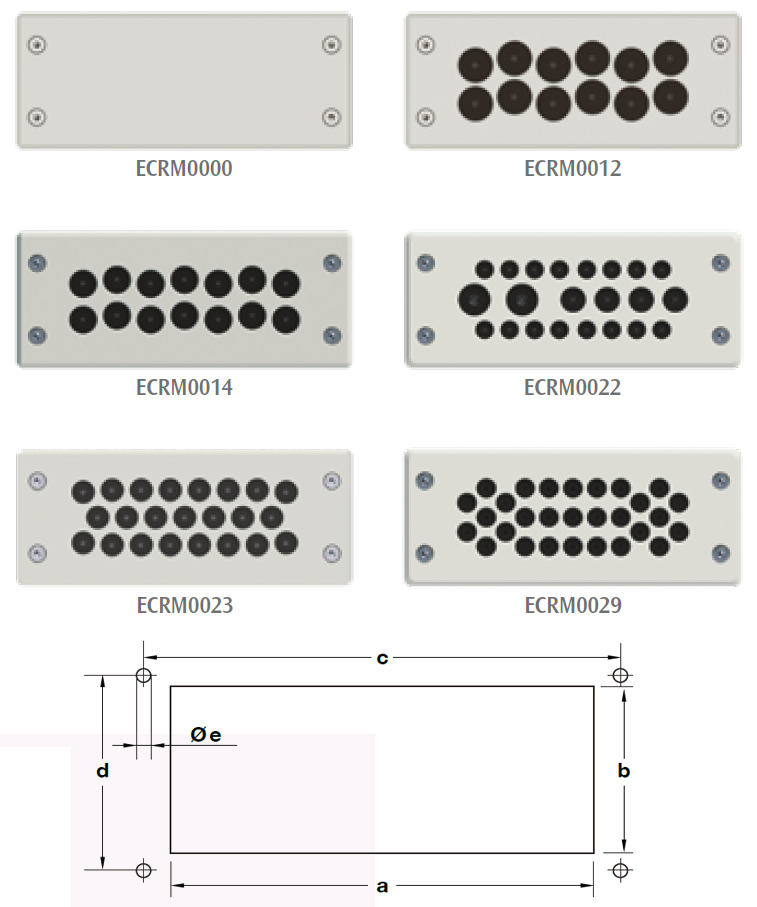

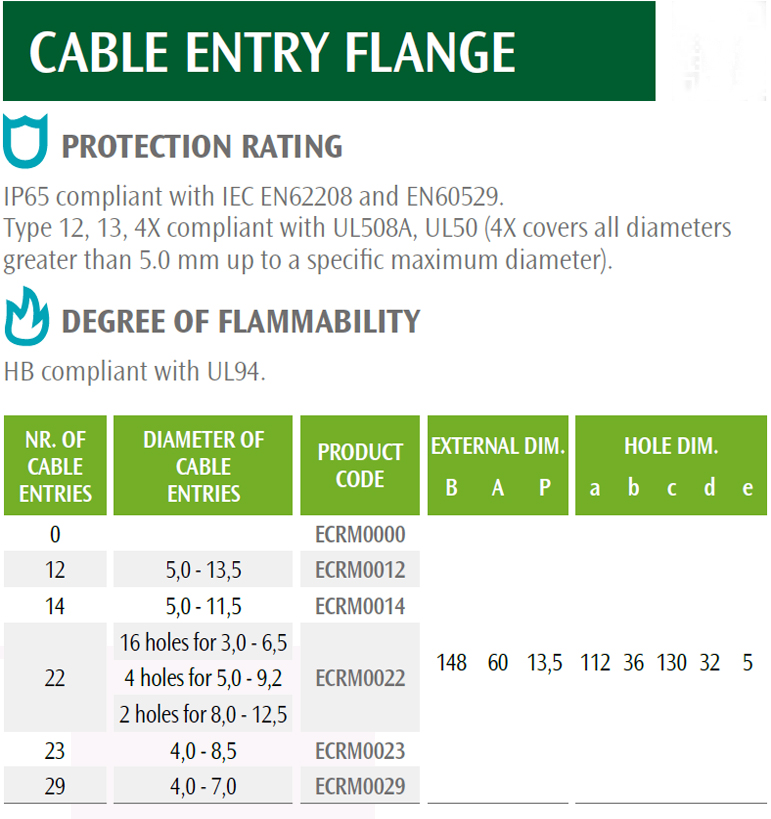

The ECRM type cable entry flange is designed for simple and safe cables passage:
• A valid alternative for boxes in which the space on the casing is limited.
• The ultra-flexible entry mode supplies protection for a wide range of cables/diameters (from 5.0 to 13.0 mm).
• Special design of the rear sealing plate.
• Special adherence even if cables are removed.
• Used on the ECIF cables entry plate or fixed directly onto the E COR casing.
• Simple click&fit assembly or fixing with the aid of screws (not supplied).

Material:
• Frame: PA reinforced with glass fibre.
• Cable entry protection membrane: Butyl Rubber.
• Spacer: chloroprene.
• Protective membrane: polyurethane.
• Gasket: silicone or polyurethane.
Temperature: -40°C +80°C. Colour: RAL7035.
