ENUX Suite Cabinets

 Introduction

ENUX Suite Cabinets(Flat-Pack Version-Parts)

ENUX 接駁型電箱系列 (扁平包裝－部件)

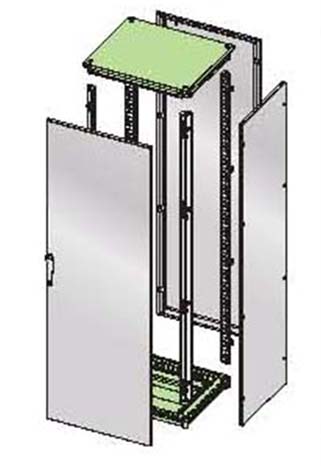

                         Roof & Bottom

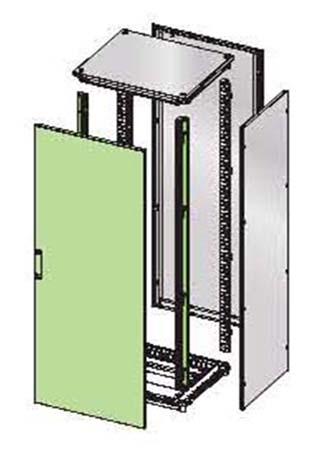

                       Blank Door & Uprights

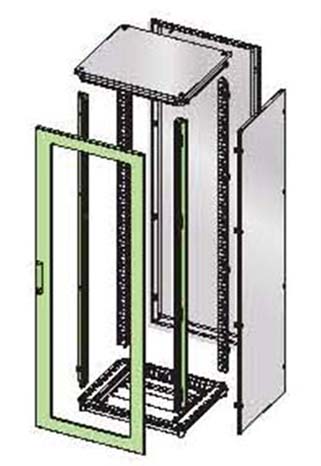

                 Plexi Door & Uprights

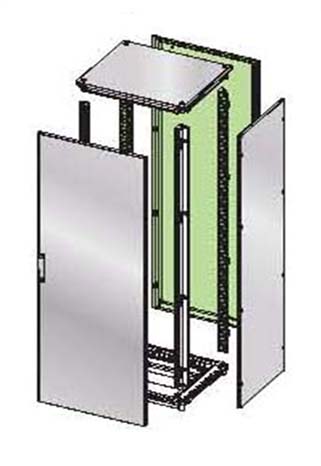

                         Rear Panel & Uprights

尺寸(闊 x 高 x 深) 型    號 型    號 型    號 型    號
W x H x D (mm) Model No. Model No. Model No. Model No.
  roof & bottom blank door & uprights Plexi door & uprights rear panel & uprights
400 x 1600 x 400 EUTF040040  EUPO040160  　 EURE040160
400 x 1600 x 500 EUTF040050  EUPO040160  　 EURE040160
400 x 1600 x 600 EUTF040060  EUPO040160  　 EURE040160
400 x 1600 x 800 EUTF040080  EUPO040160  　 EURE040160
400 x 1800 x 400 EUTF040040  EUPO040180  　 EURE040180
400 x 1800 x 500 EUTF040050  EUPO040180  　 EURE040180
400 x 1800 x 600 EUTF040060  EUPO040180  　 EURE040180
400 x 1800 x 800 EUTF040080  EUPO040180  　 EURE040180
400 x 2000 x 400 EUTF040040  EUPO040200  　 EURE040200
400 x 2000 x 500 EUTF040050  EUPO040200  　 EURE040200
400 x 2000 x 600 EUTF040060  EUPO040200  　 EURE040200
400 x 2000 x 800 EUTF040080  EUPO040200  　 EURE040200
400 x 2200 x 500 EUTF040050  EUPO040220  　 EURE040220
400 x 2200 x 600 EUTF040060  EUPO040220  　 EURE040220
400 x 2200 x 800 EUTF040080  EUPO040220  　 EURE040220
600 x 1400 x 400 EUTF060040  EUPO060140  EUPV060140 EURE060140
600 x 1400 x 500 EUTF060050  EUPO060140  EUPV060140 EURE060140
600 x 1400 x 600 EUTF060060  EUPO060140  EUPV060140 EURE060140
600 x 1400 x 800 EUTF060080  EUPO060140  EUPV060140 EURE060140
600 x 1400 x 1000 EUTF060100  EUPO060140  EUPV060140 EURE060140
600 x 1600 x 400 EUTF060040  EUPO060160  EUPV060160 EURE060160
600 x 1600 x 500 EUTF060050  EUPO060160  EUPV060160 EURE060160
600 x 1600 x 600 EUTF060060  EUPO060160  EUPV060160 EURE060160
600 x 1600 x 800 EUTF060080  EUPO060160  EUPV060160 EURE060160
600 x 1600 x 1000 EUTF060100  EUPO060160  EUPV060160 EURE060160
600 x 1800 x 400 EUTF060040  EUPO060180  EUPV060180 EURE060180
600 x 1800 x 500 EUTF060050  EUPO060180  EUPV060180 EURE060180
600 x 1800 x 600 EUTF060060  EUPO060180  EUPV060180 EURE060180
600 x 1800 x 800 EUTF060080  EUPO060180  EUPV060180 EURE060180
600 x 1800 x 1000 EUTF060100  EUPO060180  EUPV060180 EURE060180
600 x 2000 x 400 EUTF060040  EUPO060200  EUPV060200 EURE060200
600 x 2000 x 500 EUTF060050  EUPO060200  EUPV060200 EURE060200
600 x 2000 x 600 EUTF060060  EUPO060200  EUPV060200 EURE060200
600 x 2000 x 800 EUTF060080  EUPO060200  EUPV060200 EURE060200
600 x 2000 x 1000 EUTF060100  EUPO060200  EUPV060200 EURE060200
600 x 2200 x 500 EUTF060050  EUPO060220  EUPV060220 EURE060220
600 x 2200 x 600 EUTF060060  EUPO060220  EUPV060220 EURE060220
600 x 2200 x 800 EUTF060080  EUPO060220  EUPV060220 EURE060220
600 x 2200 x 1000 EUTF060100  EUPO060220  EUPV060220 EURE060220



尺寸(闊 x 高 x 深) 型    號 型    號 型    號 型    號
W x H x D (mm) Model No. Model No. Model No. Model No.
  roof & bottom blank door & uprights Plexi door & uprights rear panel & uprights
800 x 1400 x 400 EUTF080040  EUPO080140  EUPV080140 EURE080140
800 x 1400 x 500 EUTF080050  EUPO080140  EUPV080140 EURE080140
800 x 1400 x 600 EUTF080060  EUPO080140  EUPV080140 EURE080140
800 x 1400 x 800 EUTF080080  EUPO080140  EUPV080140 EURE080140
800 x 1600 x 400 EUTF080040  EUPO080160  EUPV080160 EURE080160
800 x 1600 x 500 EUTF080050  EUPO080160  EUPV080160 EURE080160
800 x 1600 x 600 EUTF080060  EUPO080160  EUPV080160 EURE080160
800 x 1600 x 800 EUTF080080  EUPO080160  EUPV080160 EURE080160
800 x 1800 x 400 EUTF080040  EUPO080180  EUPV080180 EURE080180
800 x 1800 x 500 EUTF080050  EUPO080180  EUPV080180 EURE080180
800 x 1800 x 600 EUTF080060  EUPO080180  EUPV080180 EURE080180
800 x 1800 x 800 EUTF080080  EUPO080180  EUPV080180 EURE080180
800 x 2000 x 400 EUTF080040  EUPO080200  EUPV080200 EURE080200
800 x 2000 x 500 EUTF080050  EUPO080200  EUPV080200 EURE080200
800 x 2000 x 600 EUTF080060  EUPO080200  EUPV080200 EURE080200
800 x 2000 x 800 EUTF080080  EUPO080200  EUPV080200 EURE080200
800 x 2200 x 500 EUTF080050  EUPO080220  EUPV080220 EURE080220
800 x 2200 x 600 EUTF080060  EUPO080220  EUPV080220 EURE080220
800 x 2200 x 800 EUTF080080  EUPO080220  EUPV080220 EURE080220
1000 x 1600 x 400 EUTF100040  EUPO100160  EUPV100160 EURE100160 ＊
1000 x 1600 x 500 EUTF100050  EUPO100160  EUPV100160 EURE100160 ＊
1000 x 1600 x 600 EUTF100060  EUPO100160  EUPV100160 EURE100160 ＊
1000 x 1600 x 800 EUTF100080  EUPO100160  EUPV100160 EURE100160 ＊
1000 x 1800 x 400 EUTF100040  EUPO100180  EUPV100180 EURE100180 ＊
1000 x 1800 x 500 EUTF100050  EUPO100180  EUPV100180 EURE100180 ＊
1000 x 1800 x 600 EUTF100060  EUPO100180  EUPV100180 EURE100180 ＊
1000 x 1800 x 800 EUTF100080  EUPO100180  EUPV100180 EURE100180 ＊
1000 x 2000 x 400 EUTF100040  EUPO100200  EUPV100200 EURE100200 ＊
1000 x 2000 x 500 EUTF100050  EUPO100200  EUPV100200 EURE100200 ＊
1000 x 2000 x 600 EUTF100060  EUPO100200  EUPV100200 EURE100200 ＊
1000 x 2000 x 800 EUTF100080  EUPO100200  EUPV100200 EURE100200 ＊
1000 x 2200 x 500 EUTF100050  EUPO100220  EUPV100220 EURE100220 ＊
1000 x 2200 x 600 EUTF100060  EUPO100220  EUPV100220 EURE100220 ＊
1000 x 2200 x 800 EUTF100080  EUPO100220  EUPV100220 EURE100220 ＊

 ＊ Rear Panel For Enclosure Width 1000mm or Above Is Assembled By 2 Pieces
     1000毫米闊或以上後蓋板由2塊拼裝組成

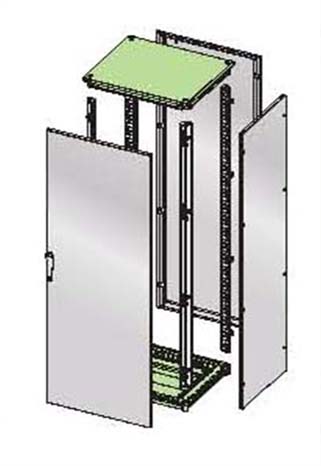

                            Roof & Bottom

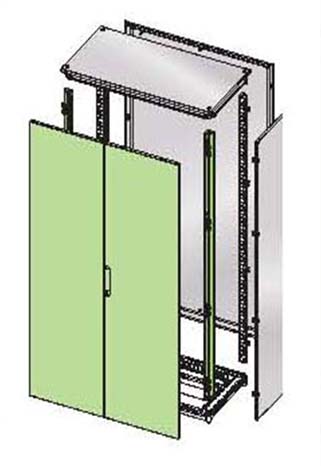

        Double Blank Door & Uprights

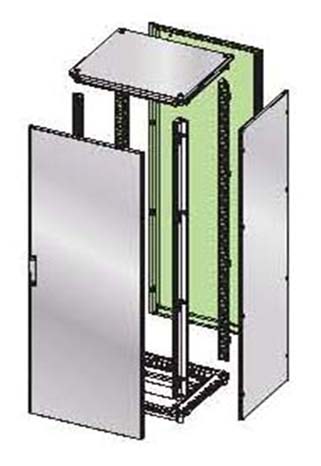

                    Rear Panel & Uprights


尺寸(闊 x 高 x 深) 型    號 型    號 型    號
W x H x D (mm) Model No. Model No. Model No.
  roof & bottom double blank door & uprights rear panel & uprights
1000 x 1600 x 400 EUTF100040  EUPO100160DP  EURE100160 ＊
1000 x 1600 x 500 EUTF100050  EUPO100160DP  EURE100160 ＊
1000 x 1600 x 600 EUTF100060  EUPO100160DP  EURE100160 ＊
1000 x 1600 x 800 EUTF100080  EUPO100160DP  EURE100160 ＊
1000 x 1800 x 400 EUTF100040  EUPO100180DP  EURE100180 ＊
1000 x 1800 x 500 EUTF100050  EUPO100180DP  EURE100180 ＊
1000 x 1800 x 600 EUTF100060  EUPO100180DP  EURE100180 ＊
1000 x 1800 x 800 EUTF100080  EUPO100180DP  EURE100180 ＊
1000 x 2000 x 400 EUTF100040  EUPO100200DP  EURE100200 ＊
1000 x 2000 x 500 EUTF100050  EUPO100200DP  EURE100200 ＊
1000 x 2000 x 600 EUTF100060  EUPO100200DP  EURE100200 ＊
1000 x 2000 x 800 EUTF100080  EUPO100200DP  EURE100200 ＊
1000 x 2200 x 500 EUTF100050  EUPO100220DP  EURE100220 ＊
1000 x 2200 x 600 EUTF100060  EUPO100220DP  EURE100220 ＊
1000 x 2200 x 800 EUTF100080  EUPO100220DP  EURE100220 ＊
1200 x 1400 x 400 EUTF120040  EUPO120140  EURE120140 ＊
1200 x 1400 x 500 EUTF120050  EUPO120140  EURE120140 ＊
1200 x 1400 x 600 EUTF120060  EUPO120140  EURE120140 ＊
1200 x 1400 x 800 EUTF120080  EUPO120140  EURE120140 ＊
1200 x 1600 x 400 EUTF120040  EUPO120160  EURE120160 ＊
1200 x 1600 x 500 EUTF120050  EUPO120160  EURE120160 ＊
1200 x 1600 x 600 EUTF120060  EUPO120160  EURE120160 ＊
1200 x 1600 x 800 EUTF120080  EUPO120160  EURE120160 ＊
1200 x 1800 x 400 EUTF120040  EUPO120180  EURE120180 ＊
1200 x 1800 x 500 EUTF120050  EUPO120180  EURE120180 ＊
1200 x 1800 x 600 EUTF120060  EUPO120180  EURE120180 ＊
1200 x 1800 x 800 EUTF120080  EUPO120180  EURE120180 ＊
1200 x 2000 x 400 EUTF120040  EUPO120200  EURE120200 ＊
1200 x 2000 x 500 EUTF120050  EUPO120200  EURE120200 ＊
1200 x 2000 x 600 EUTF120060  EUPO120200  EURE120200 ＊
1200 x 2000 x 800 EUTF120080  EUPO120200  EURE120200 ＊
1200 x 2200 x 500 EUTF120050  EUPO120220  EURE120220 ＊
1200 x 2200 x 600 EUTF120060  EUPO120220  EURE120220 ＊
1200 x 2200 x 800 EUTF120080  EUPO120220  EURE120220 ＊

 ＊ Rear Panel For Enclosure width 1000mm or Above Is Assembled By 2 Pieces
 1000毫米闊或以上後蓋板由2塊拼裝組成



尺寸(闊 x 高 x 深) 型    號 型    號 型    號
W x H x D (mm) Model No. Model No. Model No.
  roof & bottom double blank door & uprights rear panel & uprights
1400 x 2000 x 400 EUTF140040  EUPO140200  EURE140200 ＊
1400 x 2000 x 500 EUTF140050  EUPO140200  EURE140200 ＊
1400 x 2000 x 600 EUTF140060  EUPO140200  EURE140200 ＊
1400 x 2000 x 800 EUTF140080  EUPO140200  EURE140200 ＊
1600 x 1400 x 400 EUTF160040  EUPO160140  EURE160140 ＊
1600 x 1400 x 500 EUTF160050  EUPO160140  EURE160140 ＊
1600 x 1400 x 600 EUTF160060  EUPO160140  EURE160140 ＊
1600 x 1400 x 800 EUTF160080  EUPO160140  EURE160140 ＊
1600 x 2000 x 400 EUTF160040  EUPO160200  EURE160200 ＊
1600 x 2000 x 500 EUTF160050  EUPO160200  EURE160200 ＊
1600 x 2000 x 600 EUTF160060  EUPO160200  EURE160200 ＊
1600 x 2000 x 800 EUTF160080  EUPO160200  EURE160200 ＊
1800 x 2000 x 400 EUTF180040  EUPO180200  EURE180200 ＊
1800 x 2000 x 500 EUTF180050  EUPO180200  EURE180200 ＊
1800 x 2000 x 600 EUTF180060  EUPO180200  EURE180200 ＊
1800 x 2000 x 800 EUTF180080  EUPO180200  EURE180200 ＊

 ＊ Rear Panel For Enclosure width 1000mm or Above Is Assembled By 2 Pieces
    1000毫米闊或以上後蓋板由2塊拼裝組成
