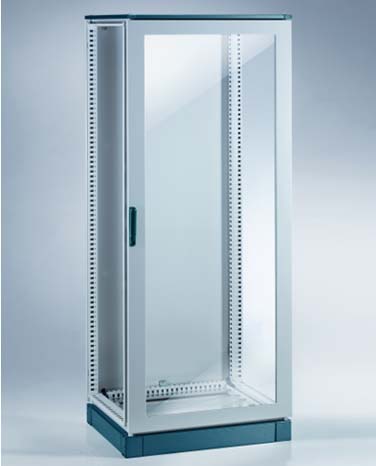

ENUX Suite Cabinets(Assembled)
ENUX 接駁型電箱系列 (已組裝)

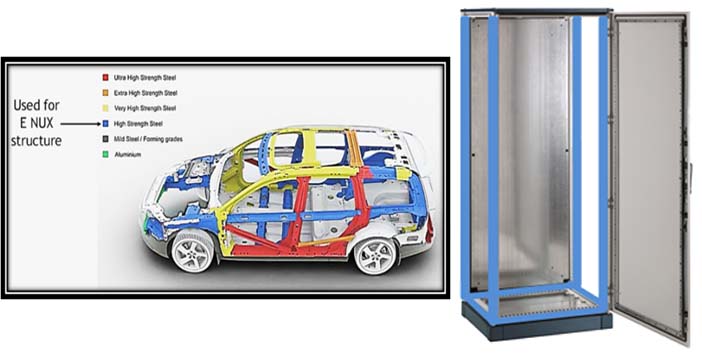

Structure made of High Strenght Sheet Steel of 1.2mm to EN10268 (HSLA)
框架由高強度低碳低合金冷軋鋼板制成
Front Plexi Door & Rear Panel, Colour RAL7035, Roof & Handle, Colour RAL5020(Without Sendzimir Mounting Plate)
前透明門及後蓋板，顏色淺灰色，頂板和手柄，顏色海藍色 (不連鍍鋅底板)
Protection 保護程度 : IP55 to IEC EN62208; EN60529
| 尺寸(闊 x 高 x 深) |
型 號 |
型 號 |
數量 |
|
型 號 |
數量 |
|
型 號 |
數量 |
| W x H x D (mm) |
Model No. |
Model No. |
Qty. |
|
Model No. |
Qty. |
|
Model No. |
Qty. |
| |
Assembled |
= roof & bottom |
+ |
front Plexi door & uprights |
+ |
rear panel & uprights |
| 600 x 1400 x 400 |
ENUX061404PV |
EUTF060040 |
1 |
|
EUPV060140 |
1 |
|
EURE060140 |
1 |
| 600 x 1400 x 500 |
ENUX061405PV |
EUTF060050 |
1 |
|
EUPV060140 |
1 |
|
EURE060140 |
1 |
| 600 x 1400 x 600 |
ENUX061406PV |
EUTF060060 |
1 |
|
EUPV060140 |
1 |
|
EURE060140 |
1 |
| 600 x 1400 x 800 |
ENUX061408PV |
EUTF060080 |
1 |
|
EUPV060140 |
1 |
|
EURE060140 |
1 |
| 600 x 1400 x 1000 |
ENUX061410PV |
EUTF060100 |
1 |
|
EUPV060140 |
1 |
|
EURE060140 |
1 |
| 600 x 1600 x 400 |
ENUX061604PV |
EUTF060040 |
1 |
|
EUPV060160 |
1 |
|
EURE060160 |
1 |
| 600 x 1600 x 500 |
ENUX061605PV |
EUTF060050 |
1 |
|
EUPV060160 |
1 |
|
EURE060160 |
1 |
| 600 x 1600 x 600 |
ENUX061606PV |
EUTF060060 |
1 |
|
EUPV060160 |
1 |
|
EURE060160 |
1 |
| 600 x 1600 x 800 |
ENUX061608PV |
EUTF060080 |
1 |
|
EUPV060160 |
1 |
|
EURE060160 |
1 |
| 600 x 1600 x 1000 |
ENUX061610PV |
EUTF060100 |
1 |
|
EUPV060160 |
1 |
|
EURE060160 |
1 |
| 600 x 1800 x 400 |
ENUX061804PV |
EUTF060040 |
1 |
|
EUPV060180 |
1 |
|
EURE060180 |
1 |
| 600 x 1800 x 500 |
ENUX061805PV |
EUTF060050 |
1 |
|
EUPV060180 |
1 |
|
EURE060180 |
1 |
| 600 x 1800 x 600 |
ENUX061806PV |
EUTF060060 |
1 |
|
EUPV060180 |
1 |
|
EURE060180 |
1 |
| 600 x 1800 x 800 |
ENUX061808PV |
EUTF060080 |
1 |
|
EUPV060180 |
1 |
|
EURE060180 |
1 |
| 600 x 1800 x 1000 |
ENUX061810PV |
EUTF060100 |
1 |
|
EUPV060180 |
1 |
|
EURE060180 |
1 |
| 600 x 2000 x 400 |
ENUX062004PV |
EUTF060040 |
1 |
|
EUPV060200 |
1 |
|
EURE060200 |
1 |
| 600 x 2000 x 500 |
ENUX062005PV |
EUTF060050 |
1 |
|
EUPV060200 |
1 |
|
EURE060200 |
1 |
| 600 x 2000 x 600 |
ENUX062006PV |
EUTF060060 |
1 |
|
EUPV060200 |
1 |
|
EURE060200 |
1 |
| 600 x 2000 x 800 |
ENUX062008PV |
EUTF060080 |
1 |
|
EUPV060200 |
1 |
|
EURE060200 |
1 |
| 600 x 2000 x 1000 |
ENUX062010PV |
EUTF060100 |
1 |
|
EUPV060200 |
1 |
|
EURE060200 |
1 |
| 600 x 2200 x 500 |
ENUX062205PV |
EUTF060050 |
1 |
|
EUPV060220 |
1 |
|
EURE060220 |
1 |
| 600 x 2200 x 600 |
ENUX062206PV |
EUTF060060 |
1 |
|
EUPV060220 |
1 |
|
EURE060220 |
1 |
| 600 x 2200 x 800 |
ENUX062208PV |
EUTF060080 |
1 |
|
EUPV060220 |
1 |
|
EURE060220 |
1 |
| 600 x 2200 x 1000 |
ENUX062210PV |
EUTF060100 |
1 |
|
EUPV060220 |
1 |
|
EURE060220 |
1 |
| 尺寸(闊 x 高 x 深) |
型 號 |
型 號 |
數量 |
|
型 號 |
數量 |
|
型 號 |
數量 |
| W x H x D (mm) |
Model No. |
Model No. |
Qty. |
|
Model No. |
Qty. |
|
Model No. |
Qty. |
| |
Assembled |
= roof & bottom |
+ |
front Plexi door & uprights |
+ |
rear panel & uprights |
| 800 x 1400 x 400 |
ENUX081404PV |
EUTF080040 |
1 |
|
EUPV080140 |
1 |
|
EURE080140 |
1 |
| 800 x 1400 x 500 |
ENUX081405PV |
EUTF080050 |
1 |
|
EUPV080140 |
1 |
|
EURE080140 |
1 |
| 800 x 1400 x 600 |
ENUX081406PV |
EUTF080060 |
1 |
|
EUPV080140 |
1 |
|
EURE080140 |
1 |
| 800 x 1400 x 800 |
ENUX081408PV |
EUTF080080 |
1 |
|
EUPV080140 |
1 |
|
EURE080140 |
1 |
| 800 x 1600 x 400 |
ENUX081604PV |
EUTF080040 |
1 |
|
EUPV080160 |
1 |
|
EURE080160 |
1 |
| 800 x 1600 x 500 |
ENUX081605PV |
EUTF080050 |
1 |
|
EUPV080160 |
1 |
|
EURE080160 |
1 |
| 800 x 1600 x 600 |
ENUX081606PV |
EUTF080060 |
1 |
|
EUPV080160 |
1 |
|
EURE080160 |
1 |
| 800 x 1600 x 800 |
ENUX081608PV |
EUTF080080 |
1 |
|
EUPV080160 |
1 |
|
EURE080160 |
1 |
| 800 x 1800 x 400 |
ENUX081804PV |
EUTF080040 |
1 |
|
EUPV080180 |
1 |
|
EURE080180 |
1 |
| 800 x 1800 x 500 |
ENUX081805PV |
EUTF080050 |
1 |
|
EUPV080180 |
1 |
|
EURE080180 |
1 |
| 800 x 1800 x 600 |
ENUX081806PV |
EUTF080060 |
1 |
|
EUPV080180 |
1 |
|
EURE080180 |
1 |
| 800 x 1800 x 800 |
ENUX081808PV |
EUTF080080 |
1 |
|
EUPV080180 |
1 |
|
EURE080180 |
1 |
| 800 x 2000 x 400 |
ENUX082004PV |
EUTF080040 |
1 |
|
EUPV080200 |
1 |
|
EURE080200 |
1 |
| 800 x 2000 x 500 |
ENUX082005PV |
EUTF080050 |
1 |
|
EUPV080200 |
1 |
|
EURE080200 |
1 |
| 800 x 2000 x 600 |
ENUX082006PV |
EUTF080060 |
1 |
|
EUPV080200 |
1 |
|
EURE080200 |
1 |
| 800 x 2000 x 800 |
ENUX082008PV |
EUTF080080 |
1 |
|
EUPV080200 |
1 |
|
EURE080200 |
1 |
| 800 x 2200 x 500 |
ENUX082205PV |
EUTF080050 |
1 |
|
EUPV080220 |
1 |
|
EURE080220 |
1 |
| 800 x 2200 x 600 |
ENUX082206PV |
EUTF080060 |
1 |
|
EUPV080220 |
1 |
|
EURE080220 |
1 |
| 800 x 2200 x 800 |
ENUX082208PV |
EUTF080080 |
1 |
|
EUPV080220 |
1 |
|
EURE080220 |
1 |
| 1000 x 1600 x 400 |
ENUX101604PV |
EUTF100040 |
1 |
|
EUPV100160 |
1 |
|
EURE100160 ＊ |
1 |
| 1000 x 1600 x 500 |
ENUX101605PV |
EUTF100050 |
1 |
|
EUPV100160 |
1 |
|
EURE100160 ＊ |
1 |
| 1000 x 1600 x 600 |
ENUX101606PV |
EUTF100060 |
1 |
|
EUPV100160 |
1 |
|
EURE100160 ＊ |
1 |
| 1000 x 1600 x 800 |
ENUX101608PV |
EUTF100080 |
1 |
|
EUPV100160 |
1 |
|
EURE100160 ＊ |
1 |
| 1000 x 1800 x 400 |
ENUX101804PV |
EUTF100040 |
1 |
|
EUPV100180 |
1 |
|
EURE100180 ＊ |
1 |
| 1000 x 1800 x 500 |
ENUX101805PV |
EUTF100050 |
1 |
|
EUPV100180 |
1 |
|
EURE100180 ＊ |
1 |
| 1000 x 1800 x 600 |
ENUX101806PV |
EUTF100060 |
1 |
|
EUPV100180 |
1 |
|
EURE100180 ＊ |
1 |
| 1000 x 1800 x 800 |
ENUX101808PV |
EUTF100080 |
1 |
|
EUPV100180 |
1 |
|
EURE100180 ＊ |
1 |
| 1000 x 2000 x 400 |
ENUX102004PV |
EUTF100040 |
1 |
|
EUPV100200 |
1 |
|
EURE100200 ＊ |
1 |
| 1000 x 2000 x 500 |
ENUX102005PV |
EUTF100050 |
1 |
|
EUPV100200 |
1 |
|
EURE100200 ＊ |
1 |
| 1000 x 2000 x 600 |
ENUX102006PV |
EUTF100060 |
1 |
|
EUPV100200 |
1 |
|
EURE100200 ＊ |
1 |
| 1000 x 2000 x 800 |
ENUX102008PV |
EUTF100080 |
1 |
|
EUPV100200 |
1 |
|
EURE100200 ＊ |
1 |
| 1000 x 2200 x 500 |
ENUX102205PV |
EUTF100050 |
1 |
|
EUPV100220 |
1 |
|
EURE100220 ＊ |
1 |
| 1000 x 2200 x 600 |
ENUX102206PV |
EUTF100060 |
1 |
|
EUPV100220 |
1 |
|
EURE100220 ＊ |
1 |
| 1000 x 2200 x 800 |
ENUX102208PV |
EUTF100080 |
1 |
|
EUPV100220 |
1 |
|
EURE100220 ＊ |
1 |
＊ Rear panel for enclosure width 1000mm or above is assembled by 2 pieces
1000毫米闊或以上後蓋板由2塊拼裝組成
Front Plexi Door & Rear Blank Door, Colour RAL7035, Roof & Handle, Colour RAL5020(Without Sendzimir Mounting Plate)
前透明門及後單門，顏色淺灰色，頂板和手柄，顏色海藍色 (不連鍍鋅底板)
Protection 保護程度 : IP55 to IEC EN62208; EN60529
| 尺寸(闊 x 高 x 深) |
型 號 |
型 號 |
數量 |
|
型 號 |
數量 |
|
型 號 |
數量 |
| W x H x D (mm) |
Model No. |
Model No. |
Qty. |
|
Model No. |
Qty. |
|
Model No. |
Qty. |
| |
Assembled |
= roof & bottom |
+ |
front Plexi door & uprights |
+ |
rear blank door & uprights |
| 600 x 1400 x 400 |
ENUX061404DV |
EUTF060040 |
1 |
|
EUPV060140 |
1 |
|
EUPO060140 |
1 |
| 600 x 1400 x 500 |
ENUX061405DV |
EUTF060050 |
1 |
|
EUPV060140 |
1 |
|
EUPO060140 |
1 |
| 600 x 1400 x 600 |
ENUX061406DV |
EUTF060060 |
1 |
|
EUPV060140 |
1 |
|
EUPO060140 |
1 |
| 600 x 1400 x 800 |
ENUX061408DV |
EUTF060080 |
1 |
|
EUPV060140 |
1 |
|
EUPO060140 |
1 |
| 600 x 1400 x 1000 |
ENUX061410DV |
EUTF060100 |
1 |
|
EUPV060140 |
1 |
|
EUPO060140 |
1 |
| 600 x 1600 x 400 |
ENUX061604DV |
EUTF060040 |
1 |
|
EUPV060160 |
1 |
|
EUPO060160 |
1 |
| 600 x 1600 x 500 |
ENUX061605DV |
EUTF060050 |
1 |
|
EUPV060160 |
1 |
|
EUPO060160 |
1 |
| 600 x 1600 x 600 |
ENUX061606DV |
EUTF060060 |
1 |
|
EUPV060160 |
1 |
|
EUPO060160 |
1 |
| 600 x 1600 x 800 |
ENUX061608DV |
EUTF060080 |
1 |
|
EUPV060160 |
1 |
|
EUPO060160 |
1 |
| 600 x 1600 x 1000 |
ENUX061610DV |
EUTF060100 |
1 |
|
EUPV060160 |
1 |
|
EUPO060160 |
1 |
| 600 x 1800 x 400 |
ENUX061804DV |
EUTF060040 |
1 |
|
EUPV060180 |
1 |
|
EUPO060180 |
1 |
| 600 x 1800 x 500 |
ENUX061805DV |
EUTF060050 |
1 |
|
EUPV060180 |
1 |
|
EUPO060180 |
1 |
| 600 x 1800 x 600 |
ENUX061806DV |
EUTF060060 |
1 |
|
EUPV060180 |
1 |
|
EUPO060180 |
1 |
| 600 x 1800 x 800 |
ENUX061808DV |
EUTF060080 |
1 |
|
EUPV060180 |
1 |
|
EUPO060180 |
1 |
| 600 x 1800 x 1000 |
ENUX061810DV |
EUTF060100 |
1 |
|
EUPV060180 |
1 |
|
EUPO060180 |
1 |
| 600 x 2000 x 400 |
ENUX062004DV |
EUTF060040 |
1 |
|
EUPV060200 |
1 |
|
EUPO060200 |
1 |
| 600 x 2000 x 500 |
ENUX062005DV |
EUTF060050 |
1 |
|
EUPV060200 |
1 |
|
EUPO060200 |
1 |
| 600 x 2000 x 600 |
ENUX062006DV |
EUTF060060 |
1 |
|
EUPV060200 |
1 |
|
EUPO060200 |
1 |
| 600 x 2000 x 800 |
ENUX062008DV |
EUTF060080 |
1 |
|
EUPV060200 |
1 |
|
EUPO060200 |
1 |
| 600 x 2000 x 1000 |
ENUX062010DV |
EUTF060100 |
1 |
|
EUPV060200 |
1 |
|
EUPO060200 |
1 |
| 600 x 2200 x 500 |
ENUX062205DV |
EUTF060050 |
1 |
|
EUPV060220 |
1 |
|
EUPO060220 |
1 |
| 600 x 2200 x 600 |
ENUX062206DV |
EUTF060060 |
1 |
|
EUPV060220 |
1 |
|
EUPO060220 |
1 |
| 600 x 2200 x 800 |
ENUX062208DV |
EUTF060080 |
1 |
|
EUPV060220 |
1 |
|
EUPO060220 |
1 |
| 600 x 2200 x 1000 |
ENUX062210DV |
EUTF060100 |
1 |
|
EUPV060220 |
1 |
|
EUPO060220 |
1 |
| 尺寸(闊 x 高 x 深) |
型 號 |
型 號 |
數量 |
|
型 號 |
數量 |
|
型 號 |
數量 |
| W x H x D (mm) |
Model No. |
Model No. |
Qty. |
|
Model No. |
Qty. |
|
Model No. |
Qty. |
| |
Assembled |
= roof & bottom |
+ |
front Plexi door & uprights |
+ |
rear blank door & uprights |
| 800 x 1400 x 400 |
ENUX081404DV |
EUTF080040 |
1 |
|
EUPV080140 |
1 |
|
EUPO080140 |
1 |
| 800 x 1400 x 500 |
ENUX081405DV |
EUTF080050 |
1 |
|
EUPV080140 |
1 |
|
EUPO080140 |
1 |
| 800 x 1400 x 600 |
ENUX081406DV |
EUTF080060 |
1 |
|
EUPV080140 |
1 |
|
EUPO080140 |
1 |
| 800 x 1400 x 800 |
ENUX081408DV |
EUTF080080 |
1 |
|
EUPV080140 |
1 |
|
EUPO080140 |
1 |
| 800 x 1600 x 400 |
ENUX081604DV |
EUTF080040 |
1 |
|
EUPV080160 |
1 |
|
EUPO080160 |
1 |
| 800 x 1600 x 500 |
ENUX081605DV |
EUTF080050 |
1 |
|
EUPV080160 |
1 |
|
EUPO080160 |
1 |
| 800 x 1600 x 600 |
ENUX081606DV |
EUTF080060 |
1 |
|
EUPV080160 |
1 |
|
EUPO080160 |
1 |
| 800 x 1600 x 800 |
ENUX081608DV |
EUTF080080 |
1 |
|
EUPV080160 |
1 |
|
EUPO080160 |
1 |
| 800 x 1800 x 400 |
ENUX081804DV |
EUTF080040 |
1 |
|
EUPV080180 |
1 |
|
EUPO080180 |
1 |
| 800 x 1800 x 500 |
ENUX081805DV |
EUTF080050 |
1 |
|
EUPV080180 |
1 |
|
EUPO080180 |
1 |
| 800 x 1800 x 600 |
ENUX081806DV |
EUTF080060 |
1 |
|
EUPV080180 |
1 |
|
EUPO080180 |
1 |
| 800 x 1800 x 800 |
ENUX081808DV |
EUTF080080 |
1 |
|
EUPV080180 |
1 |
|
EUPO080180 |
1 |
| 800 x 2000 x 400 |
ENUX082004DV |
EUTF080040 |
1 |
|
EUPV080200 |
1 |
|
EUPO080200 |
1 |
| 800 x 2000 x 500 |
ENUX082005DV |
EUTF080050 |
1 |
|
EUPV080200 |
1 |
|
EUPO080200 |
1 |
| 800 x 2000 x 600 |
ENUX082006DV |
EUTF080060 |
1 |
|
EUPV080200 |
1 |
|
EUPO080200 |
1 |
| 800 x 2000 x 800 |
ENUX082008DV |
EUTF080080 |
1 |
|
EUPV080200 |
1 |
|
EUPO080200 |
1 |
| 800 x 2200 x 500 |
ENUX082205DV |
EUTF080050 |
1 |
|
EUPV080220 |
1 |
|
EUPO080220 |
1 |
| 800 x 2200 x 600 |
ENUX082206DV |
EUTF080060 |
1 |
|
EUPV080220 |
1 |
|
EUPO080220 |
1 |
| 800 x 2200 x 800 |
ENUX082208DV |
EUTF080080 |
1 |
|
EUPV080220 |
1 |
|
EUPO080220 |
1 |
| 1000 x 1600 x 400 |
ENUX101604DV |
EUTF100040 |
1 |
|
EUPV100160 |
1 |
|
EUPO100160 |
1 |
| 1000 x 1600 x 500 |
ENUX101605DV |
EUTF100050 |
1 |
|
EUPV100160 |
1 |
|
EUPO100160 |
1 |
| 1000 x 1600 x 600 |
ENUX101606DV |
EUTF100060 |
1 |
|
EUPV100160 |
1 |
|
EUPO100160 |
1 |
| 1000 x 1600 x 800 |
ENUX101608DV |
EUTF100080 |
1 |
|
EUPV100160 |
1 |
|
EUPO100160 |
1 |
| 1000 x 1800 x 400 |
ENUX101804DV |
EUTF100040 |
1 |
|
EUPV100180 |
1 |
|
EUPO100180 |
1 |
| 1000 x 1800 x 500 |
ENUX101805DV |
EUTF100050 |
1 |
|
EUPV100180 |
1 |
|
EUPO100180 |
1 |
| 1000 x 1800 x 600 |
ENUX101806DV |
EUTF100060 |
1 |
|
EUPV100180 |
1 |
|
EUPO100180 |
1 |
| 1000 x 1800 x 800 |
ENUX101808DV |
EUTF100080 |
1 |
|
EUPV100180 |
1 |
|
EUPO100180 |
1 |
| 1000 x 2000 x 400 |
ENUX102004DV |
EUTF100040 |
1 |
|
EUPV100200 |
1 |
|
EUPO100200 |
1 |
| 1000 x 2000 x 500 |
ENUX102005DV |
EUTF100050 |
1 |
|
EUPV100200 |
1 |
|
EUPO100200 |
1 |
| 1000 x 2000 x 600 |
ENUX102006DV |
EUTF100060 |
1 |
|
EUPV100200 |
1 |
|
EUPO100200 |
1 |
| 1000 x 2000 x 800 |
ENUX102008DV |
EUTF100080 |
1 |
|
EUPV100200 |
1 |
|
EUPO100200 |
1 |
| 1000 x 2200 x 500 |
ENUX102205DV |
EUTF100050 |
1 |
|
EUPV100220 |
1 |
|
EUPO100220 |
1 |
| 1000 x 2200 x 600 |
ENUX102206DV |
EUTF100060 |
1 |
|
EUPV100220 |
1 |
|
EUPO100220 |
1 |
| 1000 x 2200 x 800 |
ENUX102208DV |
EUTF100080 |
1 |
|
EUPV100220 |
1 |
|
EUPO100220 |
1 |
 |
