Thermostats
TECHNICAL FEATURES
Adjustment range: 0° ÷ 60°C
Sensitive element: Bimetallic
Intervention sensitivity: + 2°C
Maximum opening capacity: 250 V AC, 10 (2) A / 120
V AC, 15 A
Working life: > 100.000 cycles
Connections: 2,5 mm2, 2 poles
Fixing: clip fixing on 35 mm DIN rails
Dimensions: 60 x 33 x 43 mm.
PROTECTION RATING
IP20.

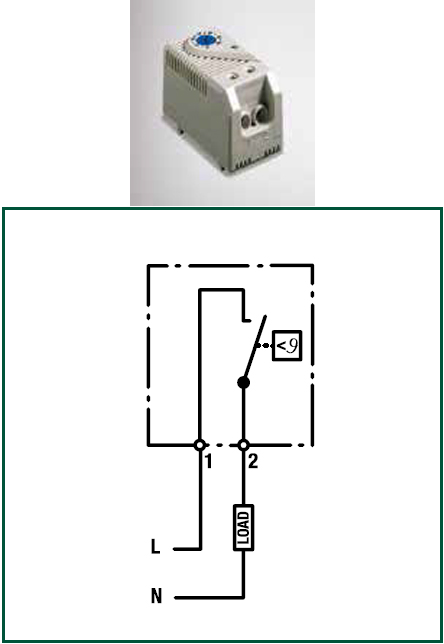

 THERMOSTAT WITH OPENING CONTACT NC WI282
When the temperature increases there’s the contact
opening. To be used to control air temperature inside
cabinets:
• heating
• ventilation
• signal transmissions.
 THERMOSTAT WITH CLOSING CONTACT NO WI284
When the temperature increases there’s the contact
closing. To be used to control air temperature inside
cabinets:
• heating
• ventilation
• signal transmissions.
 THERMOSTAT WI286 Two thermostats in one casing: • thermostat (contact breaker, normally closed) for regulation heaters • thermostat (contact breaker, normally open) for regulation filter fans and heat exchangers or switching signal devices when temperature limit has been exceeded. TECHNICAL FEATURES Adjustment range (NC – NO): 0° ÷ 60°C Maximum opening capacity: 250 V AC, 10 (2) A / 120 V AC, 10 (2) A – DC 30 W Working life: > 100.000 cycles Connections: 2,5 mm2, 4 poles Fixing: clip fixing on 35 mm DIN rails Housing: UL 94 VO thermoplastic material Dimensions: 50 x 67 x 46 mm. PROTECTION RATING IP20.
 |
