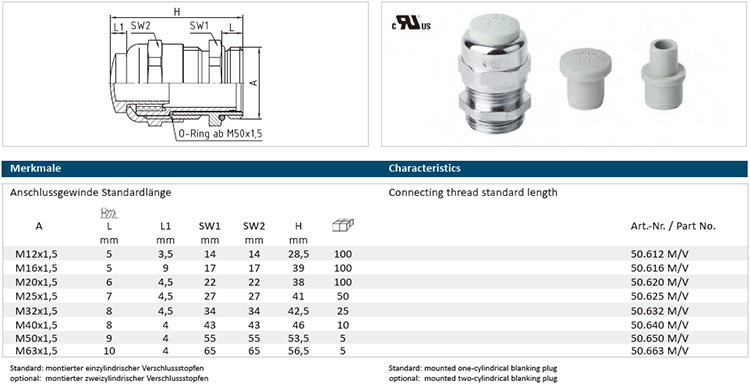

TECHNICAL DATA:
Configuration
Dome nut Brass CuZn39Pb3, nickel-plated
Blanking plug Polyamide PA6 GF30
Lamellar insert Polyamide PA6 V-2
Sealing ring Polychloroprene-Nitrile rubber CR/NBR
Gland body Brass CuZn39Pb3, nickel-plated
O-ring Nitrile rubber NBR
Connecting thread metric, as per EN 60423
Properties
• mounted blanking plug
• installation as space cable gland or protection
against dust and humidity during transport and
storage
Temperature range -20 °C / +100 °C (dynamic)
-40 °C (static, short term)
Protection grade IP68
Test standard UL 514B
UL / CSA-File E140310
Comment details about test results - see annex,
blanking plug as single part - see under accessories   |
